grinding / polishing machines / Polisher: Æú¸®¼Å




manufactures and distributes all types grinding / polishing machines from 3" to 15" platen??for research laboratories in martial engineering, semiconductor failure analysis, precision optics and lapidary hobbyists.? If you have any need for polishing machine, please call our expert at 02-868-0661 to find a cost-effective solution.? We always keep standard grinding / polishing machines and related accessories?in stock for immediate delivery, please choose?and order them?from below: ?e-mail: pcb21@korea.com



Á¦Á¶¿ø: BUEHLER, STRUERS, LECO & Many Others





Unipo820 Heavy Duty ( 8") Dual Platens Grinder/ Polisher with Magnetic Plates & Complete Accessories


Unipo800 Economic Grinding / Polishing Machine with Complete Diamond Lapping Accessories

Unipo801 Multi Purpose Precision Polishing Machine with York Support & Complete Accessories

Unipo802 (8" ) Precision Auto Lapping and Polishing Machine with two work stations


Unipo830 Heavy Duty Belt driven 8" Grinder / Polisher with Magnetic Plates & Complete Accessories


Unipo1000 (10" ) Precision Auto Polishing Machine with 6" Power Head

2" Polishing Fixture for Precision / Automatic Thinning and Polishing

Unipo1210 Heavy Duty ( 12") Precision Grinding / Polishing Machine with Magnetic Plate & Complete Accessoies


UNIPO1501(15")
PRECISION LAPPING & POLISHING MACHINE


Unipo1202 (12" ) Precision Auto Lapping and Polishing Machine with Two 4" Work Stations, EQ-Unipo1202

UNIPO1502 (15") Precision Automatic Lapping / Polsihing Machine with Three 4" Work Stations




»ó±â ǰ¸ñÁß ¿øÇϽô Á¦Ç°À» ¸ðµ¨¸íÀ¸·Î ¹®ÀÇ ÇϽøé ÀÚ¼¼ÇÑ ½ºÆÑÀ» º¸³»µå¸³´Ï´Ù. º»»çÀÇ »çÁ¤»ó ¸ðµ¨¸íÀº º¯°æÀÌ µÉ ¼ö ÀÖ½À´Ï´Ù.





Diamond Cutting blades
3", 4", 5" 6" 8" 10" 14"


Diamond Lapping Plates 320 - 2000 mesh 8"- 12" lapping plate

Diamond Cutting Wires
Dia 0.2 -0.3 mm wire: straight and loop

Diamond Mrico-Drills

Accessories for Cutting Saws Vise, spacer, pumps ---


Abrasive Sand Paper Discs


Cutting Blades / Wire

Diamond Lapping Discs

Diamond Polishing Past

Polishing Pads / Cloths


Polishing Slurry & Lubricate
(¹ÝµµÃ¼¿ë)


Wax / Glue

Sampel Mounting Accessories

Coolant / Slurry Pump


Accessories relatd cutting & Polishing Machines


3" - 6" Polishing machines


8" -10" Polishing machines

Consumables for grinding/polishing
(¹ÝµµÃ¼¿ë)

Accessoires related to polishing

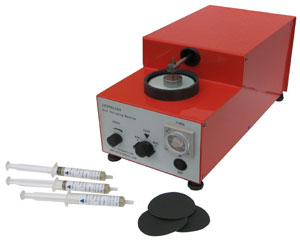

Unipo300 Mini (3") Automatic Grinder/ Polisher with Complete Accessories ?
Unipo300 Mini (3") Automatic Grinder/ Polisher with Complete Accessories

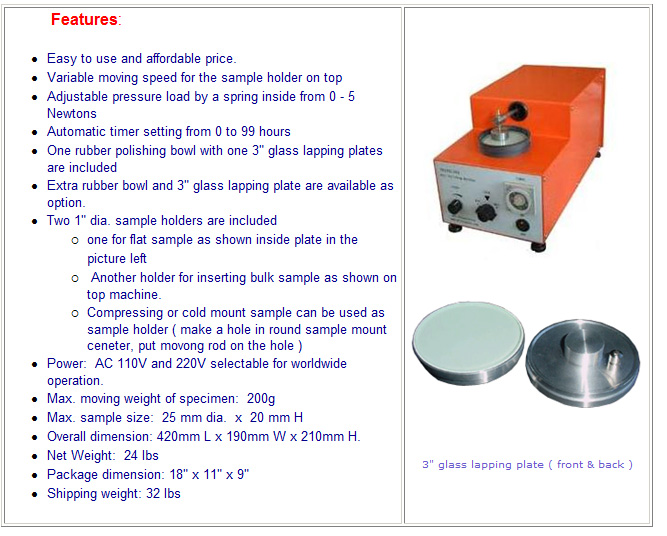

Unipo300 is a?automatic?mini-grinder / polisher?for preparing TEM, metallography, and substrate samples in?a single mount. The machine?equips with many advanced features, such as?3" fix lapping plate,?variable sample moving speed, adjustable pressure load and selectable time switch?to?achieve attention free polishing.?Unipol 300 simulates human hand to grind and polish sample via?randomly moving?sample holder?on top versus fixed 3" plate.???It is very suitable for preparing < 1" dia?specimen?in ?low volume laboratory for material research, failure analysis and medical test.? By combining?our??DSYJ-150 low speed saw,? you can own a processing lab?on one desk to prepare versatile specimen at affordable budget.





Standard Package Included in the Unipol 300 Grinder / Polisher

P/N

Item Name

DUP-300-01 Unipol 300 Grinding / Polishing Machine
DUP-300-02 Rubber polishing bowl
DUP-300-03 "3" glass lapping plate
DUP-300-04 "1" dia. sample holder for flat sample
DUP-300-05 "1" dia. sample holder for inserting bulk sample
DUP-300-06 AC power cord
DUP-300-07 Operation manual
DUP-300-07 1 set of 3 syringes (10g) diamond paste with 0.25,?1.0, and 3.0 micron grit

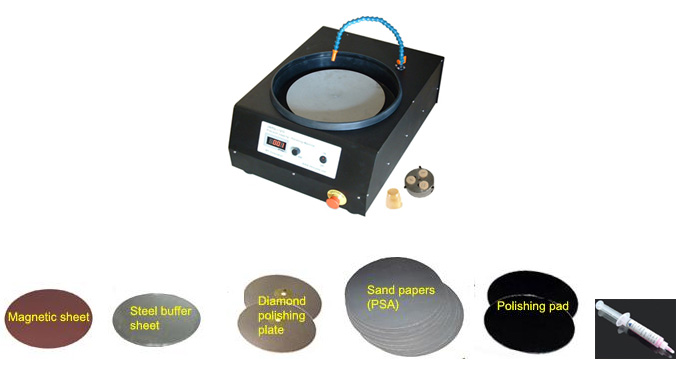

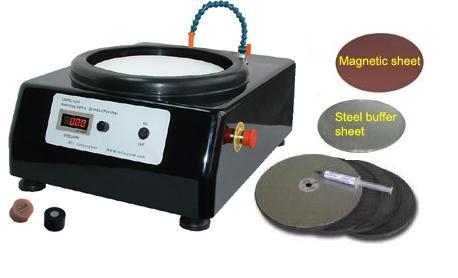

Unipo830 Heavy Duty Belt driven 8" Grinder / Polisher with Magnetic Plates & Complete Accessories ?
Unipo830 Heavy Duty Belt driven 8" Grinder / Polisher with Complete Accessories
Detailed Description

?




Unipo830 Heavy Duty Belt Driven "8" Grinder / Polisher


UNIPOL- 830 is heavy duty 8" grinder / polisher? with belt driven and quiet operation.?It comes with magnetic disk and complete accessories and allow user to change?grinding?/ plishing plates?at quick and easy. ?It? is ideal tool for preparing matellurgraphic sampel manually

Features

  • Heavy duty fiberglass case with anti corrosion painting surface.
  • Belt driven 8" platen with high torgue, which? is much stable than Unipo800
  • Power:110V or 220 V? switchable power supply, worldwide support
  • Motor:?300W DC motor with belt pulley
  • Variable speed:?from 0 - 600 RPM?with digital display for each plate
  • 8" Aluminum lapping plates can be quickly released and installed.
  • Soft rubber splash?guard for safe operation
  • Dimension: 490mm x350mm x250mm
  • Aprox. net weight:36 Kg
  • Complete accessories included for immedate use ( > value )
    • One Aluminum alloy master ?plate? 8" dia lapping plate
    • One?8" dia.x 0.8 mm thick?permanent magnetic sheet with PSA backing (? installed in Aluminum plate )
    • One?8" dia. Diamond Lapping plates with?320 mesh and 600mesh separately?(without PSA, can be attach to mangnetic plate directly )
    • Two?8"?dia x?0.7mm thick steel buffer sheet (Zinc coated)?for carrying sand paper and polishing pad, which can be attached to magnetic plate at stable and take off at easy
    • Four?pacs 8" Sic sand papers ( 2?of each?at mesh of 240#, 400# , 800# ,1500# )
    • One?8" PSA black polishing pads for final polishing?
    • One 10g??1.0 micron diamond paste for faster polishing

    ?
  • Shipping package dimension:
  • Shipping weight:95 lbs????????????

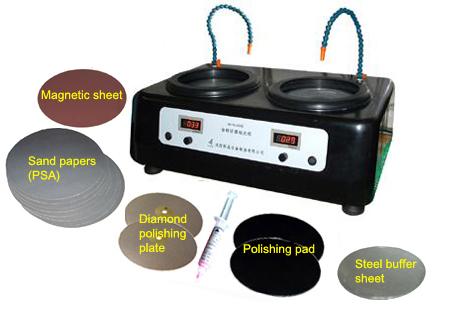

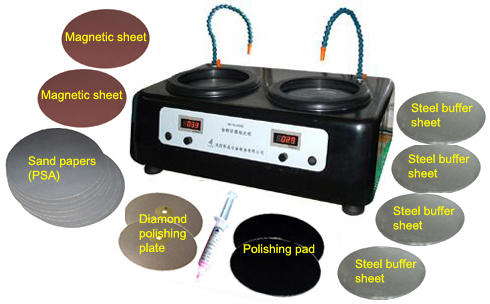

Unipo820 Heavy Duty ( 8") Dual Platens Grinder/ Polisher with Magnetic Plates & Complete Accessorie ?
Unipo820 Heavy Duty ( 8") Dual Platens Grinding / Polishing Machine with Magnetic Plates & Complete Accessories
Detailed Description



Unipo820 Dual Plates"8"?Grinding / Polishing Machine with Magnetic
Plates and Complete Accessories

UNIPOL-820 is?heavy duty ?grinding / polishing machine with two 8" lapping plates and independent speed control. Upgraded magnetic plates were installed in the machine, which make install sand paper / polishing pad quicklt and easily.? UNIPOL-820 is perfect for metallographic lab to prepare small sample faster and easier

Features :

  • Heavy duty fiberglass case with anti corrosion painting surface
  • Belt driven platen with stable and quiet operation
  • Power: 110V or 220 V? switchable power supply, worldwide support
  • Motor: Two??300W high torque DC motor with belt pulley with independent speed control
  • Variable speed: from 0 - 600 RPM?with digital display for each plate
  • Two 8" Aluminum lapping plates can be quickly released and installed.
  • Soft rubber splash?guard ring?for safe operation
  • Dimension: 580?L x?420 W?X 350 H (mm)?
  • Aprox. net weight: 44 Kg??
  • Complete accessories included for immedate use ( > value )
    • Two?Aluminum alloy master ?plate? 8" dia lapping plate
    • Two 8" dia.x 0.8 mm thick?permanent magnetic sheet with PSA backing (? installed in Aluminum plate )
    • Two 8" dia. Diamond Lapping plates with 320 mesh and 600 mesh separately?(without PSA, can be attach to mangnetic plate directly )
    • Four 8"?dia x?0.7mm thick steel buffer sheet (Zinc coated)?for carrying sand paper and polishing pad, which can be attached to magnetic plate at stable and take off at easy
    • Eight pacs 8" Sic sand papers ( 2?of each?at mesh of 240#, 400# , 800# ,1500# )
    • Two 8" PSA black polishing pads for final polishing?
    • One 10g? 0.25 micron diamond paste for faster polishing
  • Shipping package dimension:? 42" x 48" x 25"
  • Shipping weight : 160 lbs

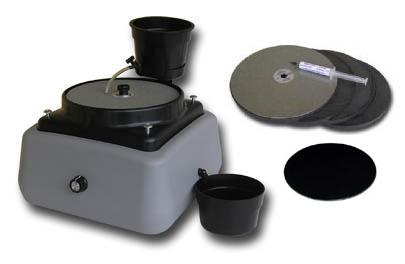

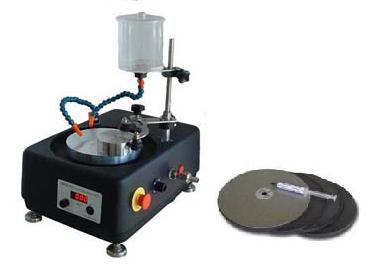

Unipo800 Economic Grinding / Polishing Machine with Complete Diamond Lapping Accessories

Detailed Description


Unipo800 Econnomic 8"?Grinder / Polishing Machine?with Complete Accessories

Unipo800 is a complete grinding and polishing machine which is designed for material research laboratory with affordable price for researchers and graduate students.? The 5-step diamond accessory kit? ( value ) makes it possible to grind, shape and polish all types of materials, such as glass, quartz, ceramic and metallic sample . Unipol 800 is quiet and?easy to?clean up.???It includes?all necessary?diamaond accessories and let you work immediately.

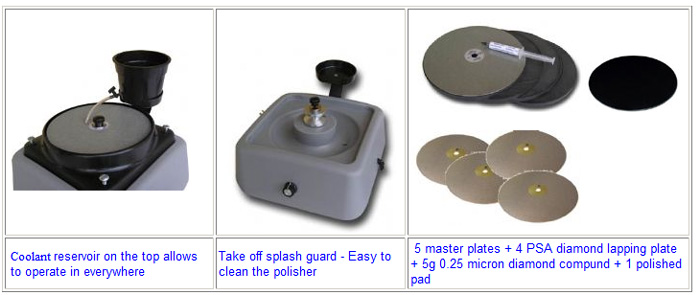

Standard Package??

  • Coolant reservoir ( top black) with valve and drain container ( botton black) are included for operating machine everywhere.
  • Five disc backing plates ( Master plate)
  • Four PSA Diamond lapping plates at? vaious mesh ( clcik underline to see specs and cost for replacement )
    • One 320 mesh? PSA plate
    • One ?600 mesh PSA plate
    • One?1200 mesh PSA plate
    • One 1800 mesh PSA plate
  • Two?Black PSA polish pad for final polishing
  • One 10 g?0.25 microm?diamond compound for final polishing
  • Complete Instructions

Specifications

Motor: 1/4 HP equivalent Ball Bearing DC
Voltage: 115V AC (220V AC as option at extra cost)
Speed 500 to 3,000 rpm
Drive: Direct Drive on 2" Flange
Dimensions 12" x 12" x 7"
Weight? 18 lbs. including accessories
Shipping Dimensions 18" x 20" x 15"
Shipping Weight 30 lbs




Unipo801 Multi Purpose Precision Polishing Machine with York Support & Complete Accessories ?
Unipo801 Multi Purpose Precision Polishing Machine with York Support & Complete Accessories
?
Detailed Description




Unipo801 Multi-Purpose "8" Precision Polishing Machine

UNIPO801 polishing machine?is equipped with ?8" super flat Aluminum lapping plate and one?york sample support, as well as complete?diamond lapping accessories. It can be used as a standard manual grinder,?or automatic lapping / polishing machine for?both of flat sample and metallurgraphic samples. It is the most cost effective solution for material research lab.

Features :

  • Heavy duty cast aluminum case with beautiful painting surface.
  • Beldrive with hig htroque and quiet operation
  • 8" dia Super flat lapping plate (Steel)
  • Condition ring with?one 75 mm dia flat sample holder for lapping polishing flat component.
    "3" dia. flat sample holder for polishing flat sample
  • 75 mm dia. sample holder with three holes to allow polishing three metallurgraphic samples up to 1" dia.?at one?time , which is available as optional
  • Two dead weights to increase polishing pressure
  • York supporter to allow polishing automatically
  • Complete accessories for grinding, lapping and polishing, including:
    • Two 8 " PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding
    • Two 8 " PSA polishing pads for final polishing
    • 10g? 0.5 micron diamond paste for faster polishing

Specifications

  • Power: 120V or 240 V selectable via a switch?
    Motor:? 0.25 KW high torque DC motor with one year warranty
    Variable speed: from 0 - 600 RPM?
    Dimension: 525 L x 350 W X325 H (mm)?
    Aprox. net weight: 30 Kg??
  • Package dimension: 40" x 34" x 32"
  • Shipping weight: 63 kg (140lbs)

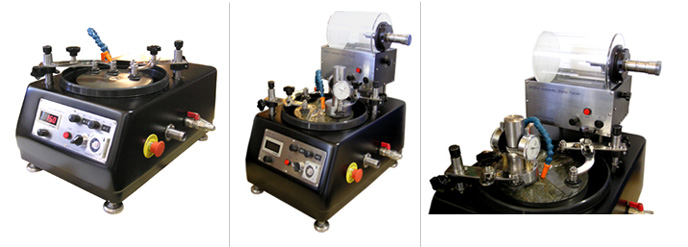

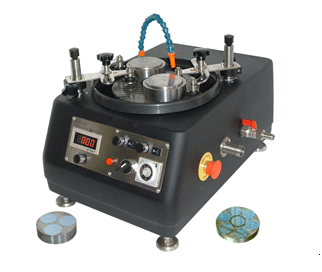

  Unipo802 (8" ) Precision Auto Lapping and Polishing Machine with two work stations

  UNIPO802 machine?is equipped with 8" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 3" in diameter. It can be?used?as a standard grinding and polishing machine for preparing metallographic samples as well. Combining with?flat sample?holder (included), three hole metallographic sample holder?(optional ), and precision thinning fixture (optional), Unipol 802 can lap and polish various samples automatically.



Features:

  • Precision rotating shaft with running off <?5 micron
  • Two super flat lapping plate with flatness < 2.5 micron / Inch2
  • one cast?iron plate for lapping and one cast aluminum plate for polishing
  • Heavy duty cast aluminum case with bright painting
  • Two rocking work stations with wafer holders and condition rings can be controlled independently for polishing?2 pcs of??3" wafers?in one running
  • Variable speed from 0?to 125 RPM with digital display
  • Adjustable timer for auto-stop up to 99 hours
  • As optional parts auto slurry feeder and precision polishing fixture are?available for polishing automatically?




Typical Specifications



Super-Flat 8" Lapping Plate Flatness < 2.5 micron / inch2
Precision Rotating Shaft Running Off <?5 micron
Heavy Duty Cast Aluminum Case with Painting Color : Black
Two Work Stations with?80 Rocking and adjustable speed 0 - 20 rocking / minute
Two flat sample holders for carring < 3" diameter wafer 80 Dia. x 35 T mm
Two Condition Rings 95 O.D. x 88 I.D. x 32 T mm
Variable Speed of Master Plate with Digital Display 0 ~ 125?rpm
Adjustable Timer for Auto-Stop 0 - 99 hours
Automatic Slurry Feeder Optional for automatic polishing
Power 120V or 240 V selectable via switch
Motor 300 W high torque DC motor
Dimension 525 L x 350 W x 325 H (mm)
Weight (without packing) 120 lbs?
Warranty one year
Package Dimension 40" x 38" x 30"
Shipping Weight 160 lb

Standard Package:





P/N

Item name

DUP802-01

DUnipo802 Polishing Machine

DUP802-02

"8" Cast Iron Polishing Plate with Machine?

DUP802-03

"8" Cast Aluminum Polishing Plate?

DUP802-04

Condition Ring?

DUP802-05

3" Sample?Flat Holder?

DUP802-06

"8" Polyamide Foam Polishing Pad?

DUP802-07

"8" Poromeric Polishing Pad (PSB)

DUP802-08

Screw Drivers

DUP802-09

Power Core

DUP802-10

Operation Manual


  Optional Parts:


P/N

?Item name

UPO802-11

SKZD-2 Automatic Slurry Feeder?

PF-2-1

"2" Polishing Fixture for Precision / Automatic Thinning and Polishing

PF-3H1W2

Polishing Sample Holder with Three 1" Holes for Metallurgraphy

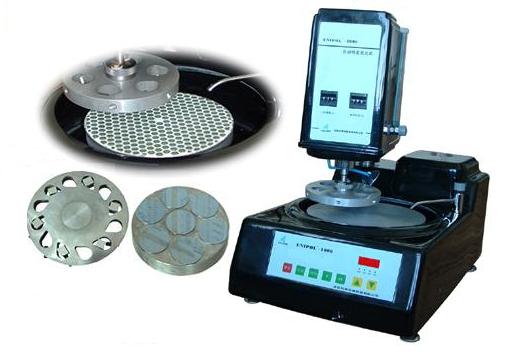

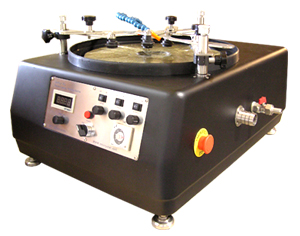

Unipo1000 (10" ) Precision Auto Polishing Machine with 6" Power Head ?
Unipo1000 (10" ) Precision Auto Polishing Machine with 6" Power Head
?
Detailed Description

?

UNIPO1000 is designed for preparing metallurgraphic, ceramic?and?optical?sample faster /?better. It equiped with 10" dia? mater plate and pressure adjustable rotation head and can polish multi samples in one time.

Features:

  • Touch pad switches control polishuing time and speed
  • Variable Platen speed from 50 - 600 RPM with didgital display
  • Variable power head platen speed between? 0-100 RPM
  • Adjustable power head force?between 1- 200 N
  • Variable cycle time from 0 - 999 seconds
  • Two sets of sample platens(6" Diameter) ?are included which can be changed quickly
    • One platen for polishing flat sample, which can mount 7 pcs 2" wafers on one plate
    • One holder plate has?6 holes ( 1" diameter) , which can mount 1" diameter or less? samples upto?6 pcs
  • coolant?or slurry feed system are built in with control valve
  • Polishing program can be set up in the front panel? ( polishing time ) and make polishing procedure consistent in every running.
  • Two years limited warranty

Main Specifications

  • DC Motor Power: 1.5KW
  • Input Power: 208 - 240V AC single phase, 50-60 Hz.
  • Mater Lapping plate:"10" (250 mm) diameter
  • Polishing time set- up: 0 - 999 seconds
  • Sample Holder Head:6" diameter
  • Head pressure:1 - 200 N
  • Overall Dimension: 660x380x640mm
  • Net Weight: 45 kg (100 lb)
  • Shipping dimension 40" x 38" x 42"
  • Shipping weight 72.5 kg (160 Lb)

Package and accessories

  • One 10" cast Alunimum lapping plate
  • Two sample holder heads
  • Ten?pcs SiC abbrasive sand papers
  • One water pipe for draining water



2" Polishing Fixture for precision Thinning and Polishing
Detailed Description


?Features:
  • Precision Polishing Jig for accurate wafer / substrate polishing and backthining
  • 2" Diameter sample holder to take wafer or substrate up to 2"
  • Thickness control screw fixture with resolution of 0.005 mm to limit stock remove
  • Two micrometers are including with resolution of +/- 1 microm for more accurate controll polishing remove
  • Two dead weighs are included for adjusting polishing gravity
  • This Polishing fixture can fit with Unipol801, Unipol802 and any precision 8" polishing machine with York support to achieve automatic polishing or thining.
  • Excellent for reparation of TEM sample and? IC section analysis and Flat single crystal substrates





  Unipo1210 Heavy Duty ( 12") Precision Grinding / Polishing Machine with Magnetic Plate & Complete Accessoies

  Detailed Description


Unipo1210 Heavy Duty "12" Grinding /?Polishing Machine with Magnetic Plate & Complete Accesories

UNIPOL- 1210 grinding / polishing machine?is equipped with "12" Magnetic lapping plate and complate accessories, including steel buffer sheet, sand paper, polishing pad, diamond lapping plate and diamond paste for immediate use.??? The upgraded magnetic plate technology allows you install and? take off sand paer and polishing pad quickly and easily. UNIPOl-1210?can be used as a standard manual grinder,?or? lapping / polishing machine for?both of flat sample and metallographic samples. It is the most cost effective solution for material research lab to prepare metallographic samples and failure analysis

Features :

  • Heavy duty steel case with beautiful painting surface.
  • Power:120V or 240 V? auto switching power supply, worldwide support
  • Motor: 300W high torque DC motor with one year warranty
  • Variable speed: from 0 - 600 RPM?with digital display
  • Emergency Stop Front Power Switch? for?easy stop
  • Dimension: 560 ?L x 345 W ?X 325 H (mm)?
  • Aprox. net weight: 42 Kg???
  • Dimension of shipment: 36" x 30" x 22"
  • Weight of shipment: 140 Lbs
  • 12" dia Aluminum alloy lapping plate? is pre-installed? with permanent magnetic sheet and allows you to attach diamond lapping plate directly with PSA , and to attach sand peper or polishing pad via steel buffer sheet
  • Complete accessories included for immediate using, including:? ( > $500 value, click underlined to order extra)
    • One?Aluminum alloy master ?plate? 12" dia lapping plate
    • Two 12" dia.x 0.8 mm thick?permanent magnetic sheet with PSA backing ( one installed in Aluminum plate and one for replacement )
    • Two 12" dia. Diamond Lapping plates with 320 mesh and 600 mesh separately?(without PSA, can be attach to mangnetic plate directly )
    • Four 12"?dia x?0.7mm thick steel buffer sheet (Zinc coated)?for carrying sand paper and polishing pad, which can be attached to magnetic plate at stable and take off at easy
    • Eight pacs 12" Sic sand papers ( 2 eack at mesh of 240#, 400# , 800# # 1200# )
    • Two 12" PSA black polishing pads for final polishing?
    • One 10g? 0.5 micron diamond paste for faster polishing





UNIPO1501(15") PRECISION LAPPING & POLISHING MACHINE

Detailed Description

UNIPO1501
machine equips with 14 -15" diameter super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" diameter with three work stations. It also can be?adopted a standard grinding and polishing machine for preparing metallographic samples.?
DAC provides you with?cost effective polishing machine to meet your budget and application.


Features of Unipol 1501

Specifications of Unipol 1501
  • Precision rotating shaft with running off < 5 micron
  • Two super flat lapping plate with flatness < 0.25 micron / inch2, one cast iron plate for lapping and one cast aluminum plate for polishing
  • Heavy duty cast aluminum case with bright painting
  • Three fixed work station with wafer holder and condition ring, which can polish 3 pcs of 4" wafers and 9 pcs of 2" wafers in one running
  • Variable speed from 0?to 500 RPM with digital display
  • Adjustable timer for auto-stop up to 99 hours
  • Optional auto slurry feeder
  • Power: 120V or 240 V selectable
  • Motor: 0.26 KW high torque DC motor with one year warranty
  • Speed: Variable from 0?to 500 RPM with digital display
  • Timer: 1 minute?~ 99.99 hours
  • Condition ring: 140 OD x 108 ID x 25 T ( mm )
  • Wafer Holder: 105 Dia. x 32 T ( mm )
  • Dimension: 650L x 510W x 300H (mm)
  • Weight: 95 Kg
  • Package dimension: 36" x 30" x 20"
  • Shipping weight:?220 lbs?


Unipo1202 (12" ) Precision Auto Lapping and Polishing Machine with Two 4" Work Stations
?
Detailed Description

UNIPO1202 machine?is equipped with 12" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can be?used?as a standard grinding and polishing machine for preparing metallographic samples as well.? With combination of?polishing auxiliaries, such as flat sample?holder ( included)??three hole metallographic sample holder? (Optional ), precision Thinning fixture (optional), and slurry feeder?(optional), Unipol 1202 can lap and polish various samples automatically.

Features:

  • Precision rotating shaft with running off < 5 micron
  • Two super flat lapping plate with flatness < 0.25 micron / Inch2 .? One cast?iron plate for lapping and one cast aluminum plate for polishing
  • Heavy duty cast aluminum case with bright painting
  • Two?rocking work stations with wafer holders and condition rings, which?can be controlled independently for polishing 2 pcs of??4" wafers?in same time.
  • Variable speed from 0?to 150 RPM with digital display
  • Adjustable timer for auto-stop up to 99 hours
  • Auto slurry feeder is an optinal part for polishing automatically?

Typical Specifications

?

?Super-Flat 12"? ( 300 mm)? Diameter Lapping Plate ?Flatness < 0.25 micron / inch2
?Precision Rotating Shaft ?Running Off < 3 micron
?Heavy Duty Cast Aluminum Case with Painting ?Color : Black or White
?Two Work Stations with?80 Rocking and adjustable speed ? 9 rocking / minute
?Two flat sample holders for carring < 4" dia. wafer ?105 Dia. x 35 T mm
?Two Condition Rings 120?O.D. x?110 I.D. x 32 T mm
?Variable Speed of Master Plate with Digital Display ?from 0 ~ 150?rpm
?Adjustable Timer for Auto-Stop ?0 - 99 hours
?Automatic Slurry Feeder ?Optional for automatic polishing
?Power ?120V or 240 V selectable via switch
?Motor ?300 W high torque DC motor
?Dimension ?700 L x?475 W x 300 H (mm)
?Weight ?154 lbs?
?Dimension of shipment ?43" x 31" x 33"
?Weight of shipment ?200 Lbs
?Warranty ?one year




UNIPOL1502 (15") Precision Automatic Lapping / Polsihing Machine with Three 4" Work Stations ?
UNIPOL1502 (15") Precision Lapping / Polsihing Machine with Three 4" Work Stations

Detailed Description
?? UNIPO1502 machine equips with 14 -15" diameter super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" diameter with three work stations. It also can be?adopted a standard grinding and polishing machine for preparing metallographic samples.?
????? MTI provides you with?cost effective polishing machine to meet your budget and application.
?Features of Unipo1502
  • Precision rotating shaft with running off < 5 micron
  • Two super flat lapping plate with flatness < 0.25 micron / Inch2
  • one cast?iron plate for lapping and one cast aluminum plate for polishing
  • Heavy duty cast aluminum case with bright painting
  • Three rocking work stations with wafer holders and condition rings.
  • They?can be controlled independently for polishing 3 pcs of ?4" wafers?or 9 pcs of 2" wafers in one running
  • Variable speed from 0?to 80 RPM with digital display
  • Adjustable timer for auto-stop up to 99 hours
  • Auto slurry feeder is an optinal part for polishing automatically?
?Specifications of Unipo1502
  • Power: 120 V or 240 V selectable
  • Motor: 0.26 KW high torque DC motor with one year warranty
  • Speed: Variable from 0?to 80 RPM with digital display
  • Timer: 1 minute?~ 99.99 hours
  • Condition ring: 140 OD x 108 ID x 25 T ( mm )
  • Wafer Holder: 105 Dia. x 32 T ( mm )
  • Dimension: 650L x 510W x 300H (mm)
  • Weight: 95 Kg
  • Package dimension: 45" x 45" x?31"
  • Shipping weight:?250 lbs?

Standard Package:

?P/N

?Name and the price for replacement

?Qty..

?Thumb Picture

DUP1502-01

Unipo1502 Polishing Machine

1

DUP1502-02

15" Cast Iron Polishing Plate

1?

DUP1502-03

15" Cast Aluminum Polishing Plate?

1

DUP1502-04

Condition Ring

3

DUP1502-05

Sample Holder

3

DUP1502-06

15" Polyamide Foam Polishing Pad

1

DUP1502-07

15" Poromeric Polishing Pad (PSB)

1

DUP1502-08

Screw Drivers?

1 set

DUP1502-09

AC Power Cord?

1

DUP1502-10

Operation Manual?

1

DUP1502-12 Drian Hose and Water Hose 1 set

Optional Parts:

?

P/N Name and the price for replacement Qty Thumb Picture
DUPO1502-11 SKZD2 Automatic Slurry Feeder 1






Colloidal Silica (SiO2) Slurry for CMP, 16 Oz/ bottle at 0.05 micron

?



Model250 Digital Controlled Alumnium Hot Plate for Mounting Samples ( 8.4" x5") - EQ-HP-1220

?



Unipo1202 (12" ) Precision Auto Lapping and Polishing Machine with Two 4" Work Stations, EQ-Unipol1202

?



15" Poromeric Polishing Pad ( PSA)for Final Polishing

?



DSKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine

?



Unipo802 (8" ) Precision Auto Lapping and Polishing Machine with two work stations





¿¬¸¶(Polishing) ó¸®ÈÄ ¿¬¸¶°¡ µÈ ºÎÀ§¿¡ ¿¬¸¶ »óŸ¦
0.001 mm ±îÁö
ÃøÁ¤ÀÌ °¡´ÉÇÑ ¿É¼Ç Á¦Ç°ÀÌ »ó±â ¸ðµç Æú¸®¼Å¿¡ ÀûÀÀÀÌ °¡´ÉÇÕ´Ï´Ù.




  DSKCH1 Precision Thickness Measurment with 0.001 mm Dial Indicator

  ½Ã·á ¹× ¿þÀÌÆÛ¿ë ½ÃÆíÀý´Ü±â(Cutting Machine) & Diamond SAW



diamond saw/´ÙÀ̾Ƹóµå¼Ò/½ÃÆíÀý´Ü±â
DMT6 High Speed Diamond Cut-off Saw with 5 pcs 6.5" impregnated diamond blades


DMT100 Mini Diamon Band Saw with Two 37.7" loop diamond blades

diamond saw/´ÙÀ̾Ƹóµå¼Ò/½ÃÆíÀý´Ü±â
DMT4 High Speed Diamond Cut-off Saw with Vise and 5 pcs 4" diamond blades


DMT200 Heavy Duty High Speed Abrasive Cut-off Saw with two 10" SiC cutting blades


DQG50 High Speed Abrasive Cut-off Saw with Double quick Clamps

diamond saw/´ÙÀ̾Ƹóµå¼Ò/½ÃÆíÀý´Ü±â
DSYJ150 Digital Low Speed Diamond Saw with complete accessories

diamond saw/´ÙÀ̾Ƹóµå¼Ò/½ÃÆíÀý´Ü±â
DSXJ2 Precision Endless Wire Saw with 2" Digital Travel and Two Angle Adjustable Sample Stage


DSYJ200 Automatic Section Saw ( 8") with complete accessories


DEC400 Precision CNC Dicing / Cutting Saw with Accessories & Software


DSTX602 Precision Wire Saw with Sample Stage and Diamond Wire

?

?




  MP300 Mounting Press for Metallographic Samples


Detailed Description

MP300 automatic mounting press is used to encapsulate samples for metallographic preparation. One mounts can be produced at one time using the mold spacer at 22 mm diameter. The one cycle time is up to 30 minutes.

  • Technical Specifications??

    ?

    Item

    Unit

    Parameter

    Power

    W

    Up to 700

    Voltage

    V

    AC 110 V

    ?(AC 220V? is available as an option)

    Temperature Control Range

    o C

    100 - 180

    Time control Range

    Min.

    1 - 30

    Pressure control

    ?

    Hand wheel with? Pressure ready sensor

    Compression Mold

    mm

    Standard: D22xH15

    Machine Dimension

    mm

    400x290x400

    Machine Net weight

    Lb.

    72.6
