시료 및 웨이퍼용 Diamond SAW (시편절단기: Cutting Machine)


  제조원: BUEHLER, STRUERS, LECO & Many Others




DMT6 High Speed Diamond
Cut-off Saw with 5 pcs 6.5"
impregnated diamond blades


DMT100 Mini Diamon Band
Saw with Two 37.7"
loop diamond blades

DMT4 High Speed Diamond Cut-off
Saw with Vise and5 pcs 4"
diamond blades


DMT200 Heavy Duty High Speed Abrasive Cut-off Saw
with two 10" SiC cutting blades


DQG50 High Speed Abrasive Cut-off Saw with Double quick Clamps

DSYJ150 Digital Low Speed
Diamond Saw with complete accessories


DSXJ2 Precision Endless
Wire Saw with 2" Digital Travel
and Two Angle Adjustable
Sample Stage


DSYJ200 Automatic Section Saw ( 8") with complete accessories

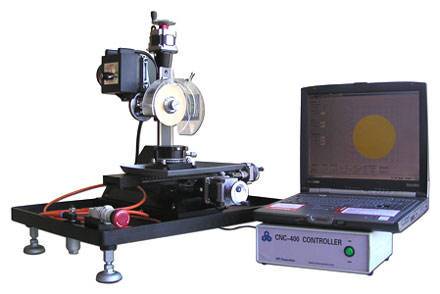

DEC400 Precision

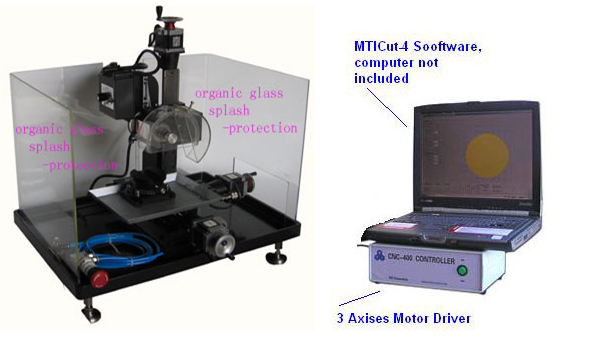

CNC Dicing / Cutting Saw with Accessories & Software


DSTX602 Precision Wire Saw with Sample Stage and Diamond Wire



  자세한 SPECIFICATION은 하기와 같습니다.

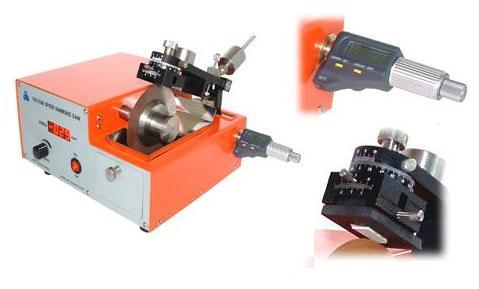

DSYJ150 Digital Low Speed Diamond Saw with complete accessories
DSYJ-150 Digital Low Speed Diamond Saw with complete accessories

Detailed Description
저속력 다이아몬드 톱은 고급현미경과 digital speed 화면을 갖추고?있다.이 장비는 두께 30mm까지의 모든 원료, 특히 깨지기 쉬운?crystal 세라믹, TEM 샘플 및 플라스틱 샘플까지도 컷팅/다이싱/슬라이싱 할 수 있는 완벽한 장비이다. MTI는 저렴한 가격과 높은 품질의 저속력 다이아몬드 톱을 만들려고 항상 노력해왔으며, 이 장비는 모든 원료 개발 실험실에 알맞게 만들어졌다.

DSYJ150 low speed diamond saw equips with advanced digital micrometer and digital speed displaceis, it is perfect tool for cutting / dicing / slicing all kinds of materials upto 30 mm thickness, especially for brittle crystals, ceramics,?and TEM samples.? DAC has tried every effort to make the low speed diamond saw at such high quality?and low price. It makes every research lab affordable.

Typical Specifications

  • Speed range: varies from 0 - 600 rpm DCwith digital display
  • Power: 110?and?220 AC switchable for worldwide use.
  • Hight toque DC motor to allow multi-blade cutting.
  • Position accuracy: 0.005mm
  • Max. travel distance: 25.4 mm by LCD digital micrometer ( 50 mm with adjusting sample holder)

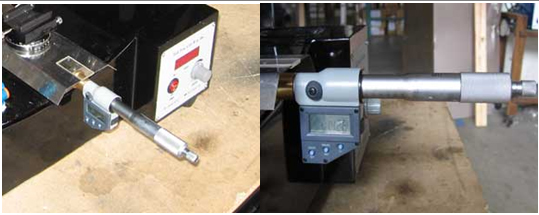

  • Water-proof LCD digital micrometer with reading of 0.001 mm and accuracy of 0.003 mm
  • Max wheel saw: 4" diameter
  • Automatic shut off: allow the saw to run unattended.
  • Warranty: two years
  • Package dimension: 19" x 15" x 15"
  • Shipping weight: 38 lbs


This is a SiC blade:4"x 0.35 mm x 0.5" arbor for cutting nonferrous metal materials, such as superalloys.

This is aAl2O3 blade:4"x 0.35 mm x 0.5" arbor for cutting ferrous metal materials, such as iron and steel.

This is a full sintered diamond blade:4"x 0.35 mm x 0.5" arbor for cutting crystals and ceramic materials

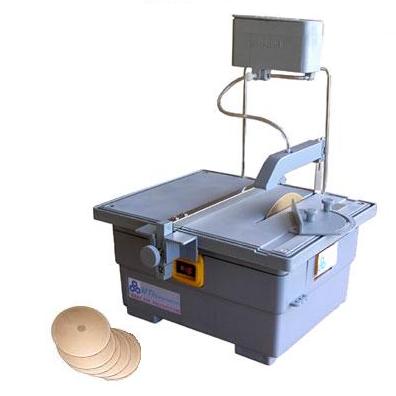

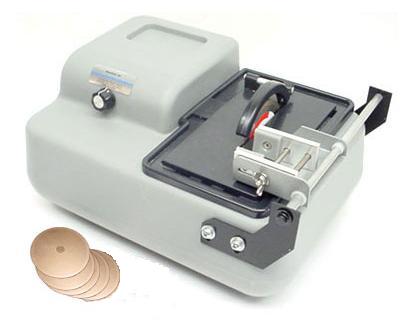

DMT6 High Speed Diamond Cut-off Saw with 5 pcs 6.5" impregnated diamond blades
DMT6 High Speed Diamond Cut-off Saw with 5 pcs 6.5" impregnated diamond blades



본 Diamond SAW는 모든 재료의 시편 제조를 위한 완벽한 사이즈 및 모든 특징을 가진 다목적용 탁상용 cut-off saw이다.

이 장비는 큰 규모의 프로젝트를 원활히 처리할 수 있다.? 이 장비는 또한 금속, 아연, 구리, 플라스틱 및 타일 세라믹 유리, ?등 훨씬 많은 재료 절단에 아주 유용하게 사용 됩니다..?

주요 특징:

  • 튼튼하고 정확하다
    알루미늄 표면은 더 견고하고 오래가며 또한 습식원료 사용후에도?부식되지 않음.? 포함된 펜스와 함께 사용한다면 좀더 정밀한 컷팅결과을 얻을 수 있을 것이다.?
  • 넓은 작업 공간
    10" x 12" 작업 표면은 큰프로젝트 수행시 충분한 작업공간을 제공한다.
  • 빠르고 쉽다
    혼란없이 빠르게 제품 조립 가능하다. 작동 및 칼날 교환이 쉽고 편리하다.
  • 습식 건식 모두 사용가능
    MT-6?cut-off saw 는 가동되지 않은 크리스탈, 세라믹, , 유리 및 다른 광물 재료의 젖은 Sawing에 다이아몬드 주입된 칼날을 사용한다. 마른 sawing을 위한 일반목적의 칼날은 옵션사항으로 구매가능하며?비철 금속, 플라스틱 및 나무 절단등에 사용된다.
  • Router나 Shaper로 전환가능 (옵션 - 그라인더 전환 키트)
    MT-6 cut-off saw 는 젖은 또는?마른 shaping 도구로 쉽고 빠르게 전환 가능하다.? 모터는 전환키트에 의해 가로나 세로 어느 쪽이든 motor shaft로 작동 가능하게 하는 교묘하게 디자인된 기술에 넣어져 있다.?MT-6 Saw 는 넓은 작업공간과 적은비용으로 여러가지 개개의 기계의 일을 한다.
  • 115V 와 240V 사용가능
    이 장비는 고객의 주문에 의해 115 나 230/240 VAC 제작 가능하다.
  • 5개의??직경 6.5 "?x 0.4mm 두께의 다이아몬드 주입된 칼날은 바로사용 가능하도록?포함되어 있음.


  Detailed Description

The DMT6?cut-off saw is the all purpose, full-size, full feature table saw for sample preparation of all materials. ?It's able to professionally handle large scale projects but precise enough for fine detail work. Imagine cutting metal cames including zinc and copper, plastics, and some woods on a saw that can also cut tile, ceramics, glass, stone, and more.
  Key Features:

  • Sturdy and Accurate
    The Aluminum surface is sturdier, longer lasting and won't corrode when used wet. With the included fence you make more accurate cuts so projects will fit better.?
  • Large Work Surface
    The 10" x 12" work surface provides plenty of work space for your larger projects while taking up a small portion of your work bench.
  • Quick and Easy
    No hassle product assembly takes only minutes. Operation is easy and straightforward. Changing blades takes only minutes.
  • Use Wet or Dry
    The MT-6?cut-off sw comes with the?five 6.5 " Diamond?Impregnated Blades to wet saw crystal rough, ceramic, stone, glass, and other mineral based materials.? With optional General Purpose Blades for dry sawing non-ferrous soft metals, plastics, and some woods.?
  • Converts to Router/Shaper with optional Grider conversion kit at only $50
    The?MT-6? cut-off?saw quickly and easily converts to a wet or dry shaping tool. The motor is encased in a cleverly designed base that allows it to operate with the motor shaft either vertically or horizontally by?optional ?the conversion kit. The?MT-6 Saw does the work of several individual machines at a fraction of the cost and frees up your work space.
  • Available in 115V and 240V
    The MT-6?cut-off saw is in 115 VAC and 230/240 VAC?is available upon request..
  • Five ?6.5 " Dia. x 0.4mm thickness?impregnated diamond blades?included for immediate use

  Product Uses:
  • Saw stained glass metal cames. Make clean, tight joints on all your metal came projects.
  • Cut-off small samples for metallography analysis
  • Cut-off glass, ceramic and crystal rough before polishing
  • Make precision cuts for professional results.
  • Create custom wood projects and parts.
  • Use for material research laboratory.

  Product Specs:
  • Standard package Includes:
    • Motor unit, base, table housing with metal table insert,
    • Five ?6.5 " Dia. x 0.4mm thickness?impregnated diamond blades, blade guard, blade arbor, fence
    • Coolant?reservoir and flow control, an?coolant drain and plastic pipe
    • instruction guide for operation.
  • Size: 12" wide x 10" deep x 6.75" high
  • Motor Type: Permanent Magnet AC
  • Torque: 31 oz.-in. (.213 N/M)
  • RPM: 2800
  • Blade type:????6.5" diameter cutting blade with 0.5" arbor.
  • Max. cutting depth: 1 1/8" (28.5 mm)
  • For even more product information, read the User's Guide.
  • The MT-6?cut-off saw is in 115 VAC and? 230/240 ACV are available upon request..
  • Shipping dimension: 20"x17"x14"(510mm x 430mm x 360mm)
  • Shipping weight :40lbs(18kg)
  • Two Year Full Confidence?Warranty



Optional Grinder Covresion kit


Make Motor vertical

Change the trim saw into a grinder
/ shaper?

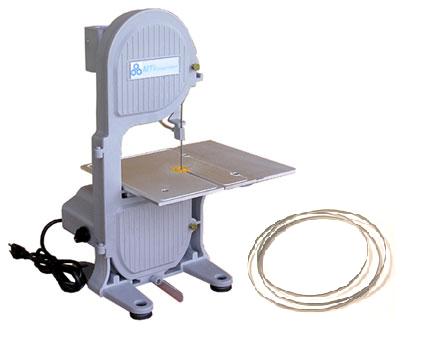

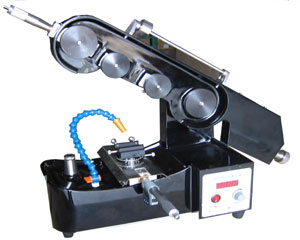

DMT100 Mini Diamon Band Saw with Two 37.7" loop diamond blades ?
DMT100 Mini Diamon Band Saw with Two 37.7" loop diamond blades

Mini Diamond Band Saw?는 세라믹, 유리 및 다양한 원료를 자르는 다용도 도구로 사용할수 있게 디자인 및 제작된 첫번째의 Bend Saw 입니다.

주요 특징:

  • 습. 건식의 많은 양의 시료를 자를 수 있다.
  • 섬유유리 및 인쇄회로 기판 등을 자를 수 있는 2개의 37.7" 긴고리형 다이아몬드 칼날을 포함한다.
  • 냉각 장치는 wet sawing용 다이아몬드 칼날에 깨끗한 냉각수를 일정하고 지속적으고?공급한다.
  • 프레임에 몰딩된 5개의 스프링 텐션 장치는 매시간 완벽한 트래킹과 간단한 칼날 설치 및 적절한 휠 정렬을 보증한다.??스프링이 달린 팽창 장치는 칼날 수명을 향상시키며 하나의 완충 장치처럼 사용된다.
  • 모터타입은 속도조절기가 부착된 high 토크 영구자석이며, 모터는 속도가 내려가면 토크를 더 일관되게?유지시켜주는 DC 모터이다.
  • 통합된 내부 배수 채널및 배수 튜브는 saw를 통한 냉각수의 재순환을 막아주며 칼날에서 나오는?오염된?냉각수를?모아준다.
  • 작업 공간은 규격화된 알루미늄 9" x 10"으로 만들어 졌으며,배수 통로는 톱질 동안 깨끗하고 명확히 보기 위해 내부 배수 시스템으로?냉각수를 흐르게 한다.
  • 테두리, 뚜껑 및 물 저장소는 구조물 등급의 열가소성 물질로 전부 몰딩되어 있다.
  • 모든 프레임과 내부 구조체는 큰 내구력과 지구성을 위해 매우 두껍다.
  • 견고하고 조용하다.? 몰딩 플라스틱 하우징은 절단과 모터 소음을 줄이고 흡수한다.? 플라스틱 구조물은 굉장히 가벼우며 조작하기 쉽게 만들어져 있다.
  • 제품 보증기간 :2년
  • 여분의?37.7" 다이아몬드 칼날은 칼날 관련제품에서 구입가능함.
Detailed Description


DMT100 Mini Diamond Band Saw with Two 37.7" diamond blades

The DMT100 ?Mini Diamond Band Saw is the first band saw engineered and designed to be a multiple use tool that cuts ceramic, glass and?various materials.

Key Features:

  • The DMT100?can cut?dozens of materials, wet or dry.
  • Two?37.7" (96 cm) ?long loop diamond blades included for sawing glass, ceramic, tile, stone, marble, porcelain, plastics, shells, plastics, fiberglass, ?printed circuit boards and more..
  • The coolant system provides a continuous, regulated flow of clean coolant to the diamond blade for wet sawing.
  • The five part spring-loaded tension system, molded into the frame, insures proper wheel alignment, simple blade setup and perfect tracking hour after hour. The spring-loaded tension system acts like a shock absorber to protect and enhance blade life.
  • The motor type is permanent magnet, high torque, with built in speed control. These are powerful DC motors that more consistently maintain torque as speed decreases.
  • Integrated internal drain channels and drain tubes collect and funnel excess, dirty coolant away from the blade and prevent it from re-circulating throughout the saw.
  • The work surface is made of machined aluminum 9" x 10". Drain channels funnel coolant into the internal drain system for a clean, clear view while sawing.
  • The frame, cover, and water reservoir are molded entirely from structural grade thermoplastic.
  • All frame and interior support walls are extra thick for maximum strength and durability.
  • It's rigid and quiet. The molded plastic housing absorbs and deadens sawing and motor sounds for quiet operation. The plastic construction makes it extremely light weight and easy to handle.
  • Two Years Full Confidence Warranty
  • Extra 37.7" daimond blade is avialable as related product

Product Specs:

  • Master Case Quantity: 1
  • Construction: Injection molded, structural grade thermoplastic.
  • Motor: permanent magnet, speed controlled, up to 2800 rpm.
  • Torque: 48 oz.-in.
  • Work surface: 9" x 10"
  • Size:18" high x 10" deep x 12" wide.
  • Weight: 9.0 pounds
  • Two?loop diamond blades: 37.7" L x 1/8" W x 0.02" thick are included for immediately cutting.
  • Throat Depth: 4.75" (12 cm)
  • Cutting Depth: Maximum material thickness: 3" (7.6cm), up to 1" solid slab glass, up to 3" diameter bottle.
  • Minimum Radius: 3/16" (.5 cm)*
  • Maximum Radius: 4.75" (12 cm)
  • Cutting Speed: Dependent on material type and thickness. Up to 12"/minute (30.5 cm/minute)
  • Input power:? standard 115V AC? and? 230/240V are available upon request.
  • Shipping dimension:12" x 12" x 20"
  • Shipping weight:15lbs




DMT4 High Speed Diamond Cut-off Saw with Vise and 5 pcs 4" diamond blades
4" 수동 Cut-off Saw는 lapping 이나 폴리싱 전의 거의 모든 원료 및 세공전 crystal, 세라믹, 금속 막대 등 값어치 있는 원료의 빠른 컷팅을 위한 완벽한 장비입니다.
  • Saw table은 평평하여?아주 큰 석판을 다듬고 제거할 수 있으며 청소도 용이하다.
    튼튼한 작업대의 치수는 6" X 10" 이며, 작동이?용이하다.
  • Saw housing은 교차 결합되어 깨지지 않게 민들어져 있으며, 녹슬지 않으며,?지저분한 오일을 사용하지 않고 물만으로 사용가능함.
  • 1/4 HP 동등한 변하기 쉬운 속도 볼 베어링?direct drive motor는 초박 다이아몬드 칼날을 사용하는데 톱을 충분히 빠르게 회전할수 있게 하며, 다이아몬드 주입된 칼날용으로?충분히 강력하다.
    속도는 400 -3250 RPM?으로 다양하게 사용 가능함.
  • 최대 컷팅 깊이 : 1" (25.4 mm)
  • 4" Dia x 0.014" (0.35 mm ) thickness x 1/2" 의 5개의 다이아몬드 주입된 칼날 및 안전한 샘플 보존을 위한
    vise도 포함되어 있슴.
  • 전압 : 110V AC (220-240V 에서 사용시 240V-110V 변압기 필요)
  • 선적 치수: 16" x 13" x 11"
  • 선적 무게 :16lbs
  • 보증기간 : 2년


Detailed Description

Manual 4" Diamond High Speed Cut-off Saw with Vise and?5 pcs of 4"Dia x 0.35 mm x 0.5" Arbor Impregnated Diamond Cutting Blades


Feature

  • 4" Manual Cut-off Saw is the perfect tool for quickly cutting valuable materials, such crystal rough, ceramic,metal rod and almost any material before lapping and polishing.
  • The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy.? The sturdy table measures 6" X 10", easy to operate.
  • The saw housing is made of unbreakable cross-linked polyethylene - No Rusting, No messy oil, uses water only.
  • The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra thin diamond blades and it is powerful enough for impregnated diamond blades.?? Speed varies from 400 -3250 RPM
  • Max. cutting depth: 1" (25.4 mm)
  • Comes with5 pcs of impregnated diamond blade of 4" Dia x 0.014" (0.35 mm ) thickness x 1/2" arbor, as well as a vise which allow you keep sample smoothly.
  • Voltage: 110V AC? ( in order to use at 220-240V , you need a transformer 240V-110V ,
  • Shipping dimension: 16" x 13" x 11"
  • Shipping weight :16lbs
  • Two Years limited warranty




4"Dia x 0.35 mm x 0.5" Arbor Impregnated
Diamond Cutting Blade

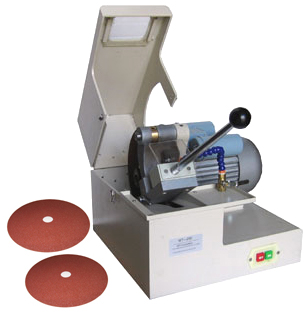

DMT200 Heavy Duty High Speed Abrasive Cut-off Saw with two 10" SiC cutting blades
DMT200 Heavy Duty High Speed Abrasive Cut-off Saw with two 10" SiC cutting blades

본 제품은 내구성이 강한 bench top의 습식 연마용 Cutting Saw이다. 이 장비는 적당한 가격에서 좀더 빠르고 안전하게 금속현미경 샘플을 자를 수 있게 제작되었다.
10" SiC 나 다이아몬드 컷팅 칼날은 최대 샘플사이즈 30 mm x 30 mm의?모든 종류의 원료을 자르는데 사용된다. 냉각장치는 자르는중 샘플이 과열되거나 물이 튀기기 않게 하기 위해?기기에 부착되어 있습니다.


Detailed Description
The DMT200 is a heavy duty bench top wet abrasive cut-off saw. It is designed for cutting metallographic sample faster and safer at affordable price. 10" SiC or diamond cutting blade is used for cutting all kinds of materials with max. sampel size of 30 mm x 30 mm. A coolant system is built in to avoid sample overheated and water splashed during cutting.

Product Specs:

  • Motor:AC Motor with 1.1 KW
  • Input Power: 220V AC single phase
  • Motor Speed: 2800 RPM
  • Cutting Blade:Two 10"OD x 1.25" ( I.D) x 2 mm (Thick) SiC cutting blade? included.
  • Max. Cutting Section:30 mm x 30 mm??
  • Mount Vise:T clamp vise is included for quick tigten or release
  • Cutting driving:Manually by push up dring rod on sample vise. It is more safe and faster than push down cut-off saw
  • Coolant system: Tap water,Inlet flow is adjustable in front panel, and outlet is at the bottom of machine
  • Machine Dimension: 650 x 450 x 400mm
  • Net Weight 60Kg ( 132 Lb)
  • Shipping dimension:45" x 35" x 30"
  • Shipping weight:160lbs
  • One?Years Full Confidence?Warranty






How to change cutting blade


How to mount sample

Water inlet &drain pipe




  Packaging List:


S/N

Name
Quantity
Note

1

Main Machine

1

Wrench

2

Cutting Blade

2

Wrench

3

Wrench

3

Wrench

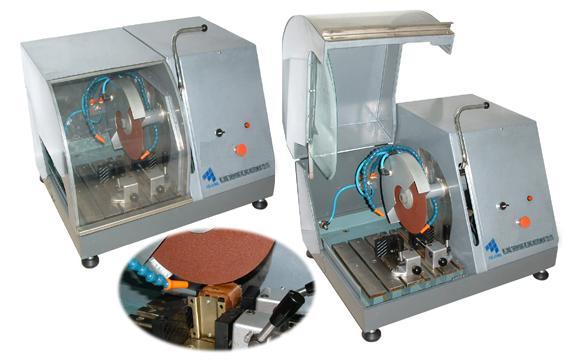

DQG50 High Speed Abrasive Cut-off Saw with Double quick Clamps ?
DQG50 High Speed Abrasive Cut-off Saw with Double quick Clamps

  Detailed Description
  The DQG50 is a heavy duty bench top wet abrasive cut-off saw. It?is designed for cutting metallographic sample faster and safer at affordable price. Double quick vises are included to allow you tighten sample easy and quick. 10" SiC or diamond cutting blade is used for cutting all kinds of materials with max. sampel size of 50 mm in diameter.A coolant system is built in to avoid sample overheated and water splashed during cutting.

  Product Specs:
  • Motor: AC Motor with 1.5 KW
  • Input Power: 220V AC single phase
  • Motor Speed: 2800 RPM
  • Cutting Blade:Two 10"OD x 1.25" ( I.D) x 2 mm (Thick) SiC cutting bladesincluded.
  • Max. Cutting Section:60 mm in diameter
  • Mount Vise:Double T clamp vises are included for quick tigten or release
  • Stainless steel working plate to protect from corrosion
  • Cutting driving:? Manually by push down driving?arm.
  • Safety cover is included to ensure safe cutting
  • Coolant system:? Cooling water injects in both side of blade to ensure max. cooling.? Tap water ?Ior nlet flow is adjustable
  • Machine Dimension:?750mm x600mm x550mm (30 " x 24 " x 22 ")
  • Net Weight:??65Kg ( 132 Lb)
  • Shipping dimension:45" x 42" x 35"
  • Shipping weight:300lbs
  • One Years Full Confidence Warranty

  Packaging List:


S/N

Name
Quantity
Note

1

Main Machine

1

DMT200 Cutting Machine

2

Cutting Blade

2

Silicon Carbide




DSXJ2 Precision Endless Wire Saw with 2" Digital Travel and Two Angle Adjustable Sample Stage
DSXJ2 Precision Endless Wire Saw with 2" Digital Travel and Two Angle Adjustable Sample Stage
Precision Wire Saw는 연마용의 슬러리로 간단한 Wire 칼날 또는 다이아몬드가 스며든 칼날 모두 사용함으로서 부서지기 쉬운 결정이나 SrTiO3, YVO4, GaAs같은 기판의 거의 모든 종류의 재료를 아주 부드럽게 자를 수 있게 디자인되었다.
이것은 부서지기 쉬운 결정이나 고가의?정교한 컷팅에 아주 이상적인 톱이며, 또한 실험실 용도 및 연구개발에 아주 많은 도움이 됩니다.
Detailed Description

SXJ-2 precision wire saw is designed to provide a very smooth cutting for almost all kinds of materials, especially for very fragile crystals and substrates such as SrTiO3, YVO4, and GaAs etc. by using either a diamond impregnated or a plain wire blade with abrasive slurry. It is an ideal saw for your needs of cutting valuable delicate and fragile crystals. It is a very helpful for your R&D and laboratory applications

Specifications:

  • Stage traveling distance: Max. 50.8 mm or 2" ( New feature ) also, 360 degree rotating and 30?degree tilt stage included
  • 2" Digital micrometer head is installed and Traveling position accuracy: +/- 0.003 mm? ( 3 microns)
  • Size of sample stage: 80 x 51 mm
  • Wire traveling speed: 0-5 mm/sec.?
  • Cutting thickness: Up to 50 mm?
  • Power Supply: A/C 110V or 220 V selectable
  • Package dimension: 36" x 20" x 21"
  • Shipping Weight: 120 Lbs
  • Caution:? Please use anti-corrossion coolant for cuting ( Lube-cool 150 suggested), never use water for cutting cooling)

2" precision digital micrometer head with 2" ( 50 mm) travel distance and 0.003 mm accuracy

Standard Package with the Machine:


Part No

Description

DSXJ2

SXJ-2 Wire Saw with power supply

DSXJ2-3

300 Tile Sample Holder

DSXJ2-4

Cross Vise for Holding Sample

DSXJ2-5

900 Sample Mount

DSXJPW3

840 mm long, 0.35 mm dia. Diamond Loop Wire

DSXJ2-6

Driving Belt

DSXJ2-7

Wax Bulk

DSXJ2-8

Graphite Block

DSXJ2-9

Screw Driver

DSXJ2-10

Fuse

DSXJ2-11

AC Power Cord

DSXJ2-12

Operation Manual

DSXJ2-13

Hoses



Standard Package with the Machine:



DECO417

110V Immersion water pump for coolant circulation (a voltage converter included for customers with 220-240V power supply)

?*Optional

DLube cool

Lube Cool 150 Lubricant, 1 Oz/bag

*Optional

?DSXJOPW2

840 mm log, 0.2 mm dia. Plain Steel Loop Wire

*Optional


  Related Products




2 pcs of high quality wax bulks for samples bounding



LubeCool150 Smart Solid Lubricant and Coolant for Diamond Saw Cutting

One 0.2 mm Thick Plain Steel Loop Wire for Cutting Almost All Materials by Feeding Selected Slurry - SXJO-PW2



One 0.3 mm Thick Diamond Loop Wire ( 84 cm ) for SXJ-2 Wire Saw - DSXJPW3



DSYJ150 Digital Low Speed Diamond Saw with complete accessories

10 pcs of high quality wax rods for gluing samples



DSYJ200 Automatic Section Saw ( 8") with complete accessories ?

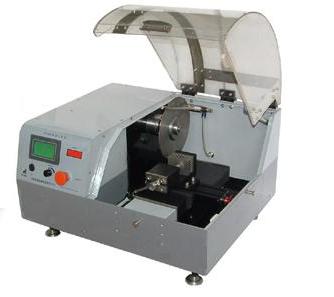

DSYJ200 Automatic Section Saw ( 8") with complete accessories
자동 Diamond Saw는 직경 3"까지의 모든 종류의 재료를 정밀 컷팅 하기 위해 디자인되었다. 이 장비는 자동제어를 만들기 위해 직경 8" 다이아몬드 칼날과 touch-push panel을 갖추고 있으며 또한 금속학 및 세라믹 원료개발실험을 위한 완벽한 컷팅 장비 입니다.

Detailed Description

DSYJ200 automatic diamond saw is designed for precision cutting all type of materials up to 3 " diameter. The saw is equiped with 8" diameter diamond blade and touch-push panel to achieve automatical control. It is perfect cutting tool for metallurgical, ceramic and materials research laboratories

Features:

  • 1 HP high torque DC motor
  • 1" dia spindle and 2" flange to accept 6 - 8" dia diamond blade
  • Variable blade speed: 100-4500 RPM with digital display
  • Cutting capacity: 3" Deep x 4" L x 3.5" W
  • Programmable Y and X axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision.
    • X axis is for cutting feed which has Max. travel distance of 120 mm amd adjustable speed from 1.0 mm/ minute to 20 mm/minutes
    • Y axis is for controlling thickness of slices, which can be programed up to 90 mm distance.
  • Quick lamp is included to make sample mount easy and fast
  • Protective splash cover with electronic safety interlock
  • Recirculating coolant system with adjustable nozzles
  • One 8" diameter x 0.025mm thickness and 1"airbor sintered diamond blade is included for immediate use
  • Dimension: 622mm x523mm x460mm
  • Shipping weight: 65 Kg
  • Two (2) year warranty - parts and labor





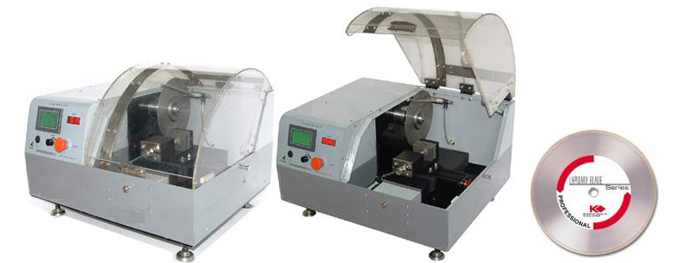

DEC400 Precision CNC Dicing / Cutting Saw with Accessories & Software
DEC400 Precision Dicing / Cutting Saw- - made in USA with most competitive price in the world
다이싱 및 컷팅 톱은 적은 비용으로 8"L x 4"W x 1" T components 또는 wafer 직경 4"까지의 거의 모든 종류의 재료를 자르거나 다이싱 할수 있도록 디자인 되었다.
본 장비는 0.1mm 또는 이상의 정확학한 위치에 컴퓨터로 완벽하게 저가능하다.
두 각도 조절이 있는 샘플 단계는 오차범위 +/- 0.5o의 원하는 각도에서 재료를 자를 수 있는 기계이다.
초전자 연구분야나 원자재의 연구개발 실험을 위한 다이싱 및 컷팅 해결에 효과적인 비용 및 정밀함을 제공합니다.


Detailed Description

DEC400 dicing / cutting saw is designed for dicing and cutting almost all kinds of materials up to 4" diameter wafer or 8" L x 4"W x 1" T components at low cost. EC400 saw is fully controlled by a computer (any computer of 486 or up to IBM compatible) with position accuracy of 0.01 mm or better. The sample stage with two-angle adjustment comes with the machine, which allows customers to cut materials at desired angle with +/- 0.5o tolerance.EC400 is a precision and cost effective dicing and cutting solution for R&D Lab in Materials and Micro-electronics research field.

Features of EC 400 Dicing / Cutting Saw

  • 1/2 HP high torque DC motor with variable speed up to 3,000 rpm, which can be operated at the voltage from AC 110V to 240 V.
  • The cutting sample can be moved by either program or manual with X,Y, and Z 3-dimension motion up to X = 8", Y=4" ,and Z = 4"
  • The CNC controlled step motor operates at 0.0025 mm moving resolution and 0.01 mm position accuracy.
  • An user friendly software, MTICUT4 is included? which allows customers to cut or dice samples automatically via using 486 IBM compatible computers, which must be installed with Window's 98 or Windows Me. (Window's 2000 or?Window's XP system will not work so far?).You can use an old computer to operate EC400.Window 98 software disk included
  • One 4" dia x 0.35 mm thick fully sintered diamond blade, and two pairs of flanges with 62 mm dia. ( for dicing ) and 42 mm dia ( for deep cutting) Included.
  • Assemblies of water jetting , draining, and splashing protection are Included
  • Vacuum chuck and alignment microscope for easy wafer dicing are available as optional parts
  • Dimension of 580 L x 560 W x 660 H mm, and net weight of 28.5 Kg
  • Shipping dimension :43"L x 30"W x 34"H
  • Shipping weight : 150 lbs




Smart Tip and Options (please select from optional parts below )

  • Please use anti-corrosion coolant during cutting. You may select our LubeCool150 lubricant as coolant , and build up a small circulation system with an immersion pump (ECO 417)??, which will?make diamond blade cut more efficient and keep the machine from corrosion. Also, you can use " radiator coolant for cutting, which is available at any Auto store. Please never use water as cutting coolant during cutting, which will damage the machine.
  • For dicing Si, Ge, GaAs and quartz, LiNbO3 wafers , you may consider to use 100 microns ultra-thin diamond blade to achieve less kurf
  • In order to make accurate aligement when cutting wafer, you shall choose 25x stereo microscope with support frame
  • For mounting wafer easily and quickly, you may also choose a vacuum chuck ( P/N ECO402 ) and adhensive film
  • Laptop computer with Window's 98 and MTICut-4 software is available upon request.

Standard Package:

  1. A cutting machine with a spindle motor and three step motors
  2. One three-axis step motor driver with 3 cables to the CNC machine , and one cable to the computer system.
  3. Three-axis step motor driver is included
  4. DMTICUT4 software works under Window's 98 or Window's Me.
  5. Necessary accessories for immediate operation as the following list.

  DSTX602 Precision Wire Saw with Sample Stage and Diamond Wire


DSTX602 Precision Wire Saw with Sample Stage and Diamond Wire ?

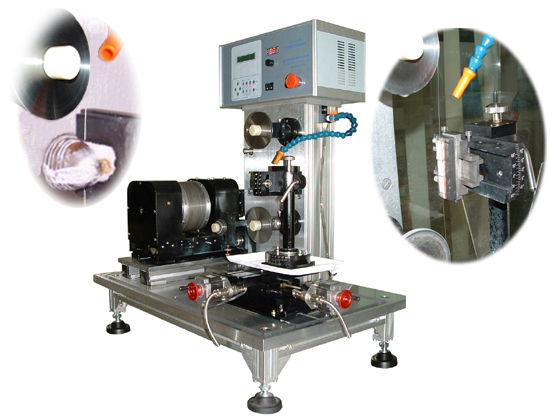

DSTX602 Precision Wire Saw with Sample Stage and Diamond Wire
정밀 다이아몬드 wire saw는 직경 6"까지의 크리스탈, 특히 SrTiO3, ZnO, LiNbO3, GaAs 같이 부서지기 쉬운 재료를 아주 부드럽게 자르거나 dicing할 수 있게 디자인 되었다.? 이 장비는 자동 제어기가 앞뒤 반복적으로 움직이며 다이아몬드 주입된 wire(직경 0.28mm)에 의해 결정을 자른다. 이 장비는 샘플 홀더와 3개의 조정가능한 앵글이 갖추어져 있으며 세라믹 재료, 결정 실험 및 연구개발에 아주 유용한 컷팅 장비입니다.

Specifications:

  • 내구성이 강한 알루미늄 합금 구조
  • 터치 스크린이 있는 디지털 제어 판넬 및 다이아몬드 와이어의 이동속도 및 두께 슬라이싱및 샘플 stage의feeding 속도를 제어할 수 있게 프로그램 셋팅할 수 있다.
  • 샘플 stage는 세각도에 조절될 수 있으며 또한 정밀 적응을 만들 수 있다.
  • 샘플 stage의 최대 이동거리 : 12"
  • 이동 위치 정확도 : +/- 0.01mm
  • 최대 컷팅 직경 : 6" (휠 조절 가능)
  • Wire?이동 속도 : 0-5 mm/sec.?
  • 다이아몬드 와이머 2롤(64 m long x 0.28 mm diameter ) 은 바로 사용할 수 있게 포함되어 있슴.
  • Power Supply: A/C 110V or 220 V selectable
  • Package dimension: 810mm x 800mm x 800mm (32"x31.5"x31.5")
  • Shipping weight: 150??kg (303 lbs)
Detailed Description
  DSTX602 precision doamomd wire saw is designed to provide smooth cutting or slicing for all kinds of materials, especially for very brittle crystals, such as SrTiO3, ZnO, LiNbO3 and GaAs etc. up to 6" diameter.?It cuts crystal by a diamond impregnated wire ( 0.28 mm diameter) which move repeately backing and forward with automatic controller. It is equipped with a sample holder with htree angles adjustable
DSTX-602 is a ideal cutting tool for your R&D and laboratory of crystal and ceramic materials



Specifications:

  • Heavy duty Aluminum alloy structure
  • Automatic control for moving speed of diamond wire, feeding speed of sample stage and slicing thickness.
  • The sample stage can be adjusted in three angle or make precision orientation
  • Max. travel distance of sample stage is 12". Traveling position accuracy: +/- 0.01mm
  • Max. cutting diameter is 6" diameter by adjusting guiding wheels
  • Wire?Moving speed: 0-5 mm/sec.?
  • Tworolls of diamond wires ( 64 meter long x 0.28 mm diameter ) are includedfor immediate use
  • Power Supply: A/C 110V or 220 V selectable
  • Package dimension: 810mm x 800mm x 800mm (32"x31.5"x31.5")
  • Shipping weight: 150kg (303 lbs)



Note:

  • We don't keep this diamond wire saw in stock, please allow 4- 6 weeks to delivery after order.
  • Technical training is avialable in our laboratory in China only to keep cost down
  • Caution: Please use anti-corrossion coolant for cuting ( Lube-cool 150 suggested), never use water for cutting cooling.



Related Products





2 pcs of high quality wax bulks for samples bounding



Diamond Wire of 0.28 mm Dia. x 65 m L ( 215 feet) for Wire Saw Cutting - DW028x60

Diamond Wire of 0.28 mm Dia. x 65 m L ( 215 feet) for Wire Saw Cutting - DW028x60
